Test Project
Solar Parking - OPTI - Blueroof - LED Lighting - Painting -
TYPE 1
Ideal orientation: South
TYPE 2
Ideal orientation: South
TYPE 3
Ideal orientation: East-West
TYPE 4
Ideal orientati4n: South

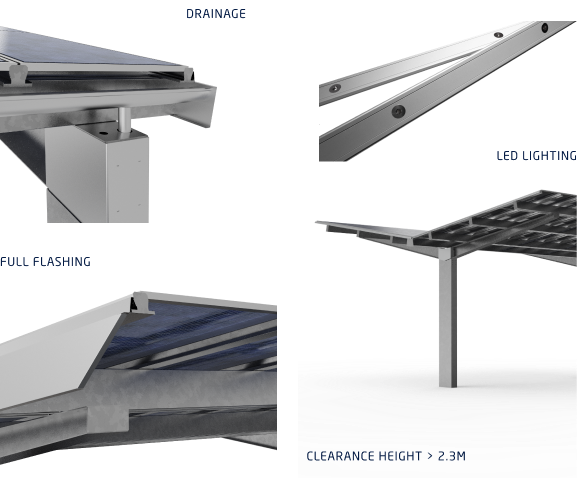

OPTI Optional Additions
DRAINAGE
Half round zinc gutters & downpipes.
Full END Flashing
Steel facia covers purlins and fixings.
LED LIGHTING
LED panels in recycled aluminum.
INVERTER PLATE
Steel plate for inverter mounting.
Extended CLEARENCE HEIGHT
Above 2,3 meter in clearance height.
PAINTING
Wet-painted RAL colors for the columns and rafters.
* Distance can be adjusted according to the requirements.
Materials
Posts and rafters
Hot Galvanized according to EN - 1461
Beams and rail
Zinc-magnesium in accordance to DIN 55928-8
Structural Standards
Eurocode
EN 1990 Eurocode 0: Basis of structural design
EN 1991-1-3 Eurocode 1: Action on structures – Part 1-3: Snow loads
EN 1991-1-4 Eurocode 1: Action on structures – Part 1-4: Wind actions
EN 1991-1-7 Eurocode 1: General actions – Part 1-7: Accidental actions
EN 1993-1-1 Eurocode 3: Design of steel structures – Part 1-1: General rules and rules for buildings
EN 1993-1-3 Eurocode 3: Design of steel structures – Part 1-3: General rules
EN 1993-1-5 Eurocode 3: Design of steel structures – Part 1-5: Plated structural elements
